Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold

Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold

  • Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold
  • Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold
  • Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold
Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold
Product Details:
Place of Origin: Mainland China
Brand Name: NC875
Certification: ISO9001,CE,SGS
Model Number: 875
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Can talk
Packaging Details: Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 90,000 pcs monthly
Contact Now
Detailed Product Description
Item Name: Exhaust Pipe Material: Ductile Iron
Process: Clay Sand Casting Service: OEM/ODM
Dimensions: Customer's Drawings OEM: Available
High Light:

cast iron sand casting

,

ductile iron sand casting

,

resin sand casting

Ductile Iron Clay Sand Casting Exhaust Manifold Tractor Exhaust Manifold



Product Details



Main blank Process for Casting
Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Tolerance -Casting Tolerance
CT9-10 for Machine Molding Process,

CT8-9 for Shell Molding and Lost Foam Molding Casting Process

CT10-11 for Manual Molding Sand casting Process
Applicable Material
See Table Below (Ductile Iron Casting, Grey Iron Casting)

OR According to customer requirement
Casting Blank Size /Dimensions
2 mm-2000mm / 0.08inch-79inch for custom turbo manifold imagescomponents, according to customer requirement
Casting Blank Weight
Range from 0.01kg-1000kg for casting parts for custom turbo manifold images
Applicable Machining Process
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
Machining Tolerance
From 0.005mm-0.01mm-0.1mm
Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement
Applicable Heat Treatment
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting etc.

MOQ for batch order
For cast iron: 100pcs

For Machining: 50pcs
Lead Time
45 days for casting exhaust manifold

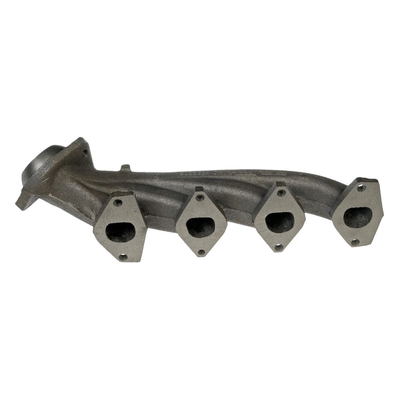

Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold 0

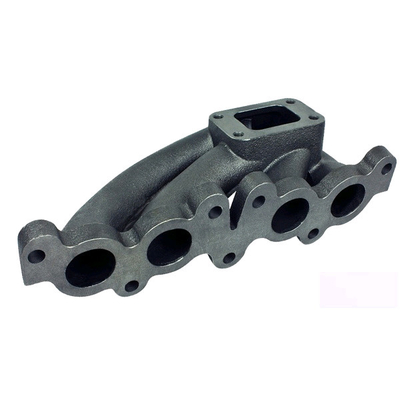

Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold 1



Production Process

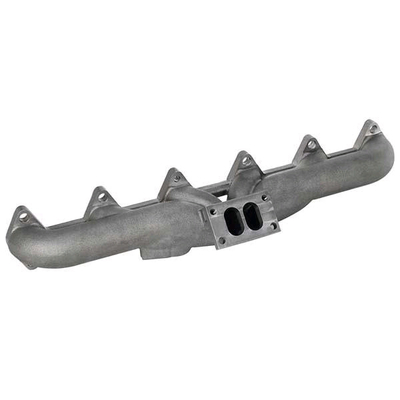

Custom Ductile Cast Iron Clay Sand Casting Tractor Exhaust Manifold 2



Our Advantages



1. High quality, cost-effective tillage points thanks to our advanced technology and equipment.
2. Our tillage points with full carbide tips, best performing on the market.
3. Over 25 rich experiences in R & D and manufacturing.
4. The best quality raw materials.
5. We accept OEM manufacturing and produce on your design.



FAQ



Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model

Can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
