Place of Origin: | Ningbo,China |
Brand Name: | NC604 |
Certification: | ISO9001,CE |
Model Number: | 604 |
Minimum Order Quantity: | 50 pcs |
---|---|
Packaging Details: | Customized |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 60,000 pcs per month |
Type: | Wedge Anchor | Material: | Steel |
---|---|---|---|
Diameter: | Customers' Demands | Standard: | ISO And CE |
Application: | Building Construction | Certificate: | ISO9001:2008 And CE |
High Light: | post tensioning system,prestressed anchorage |

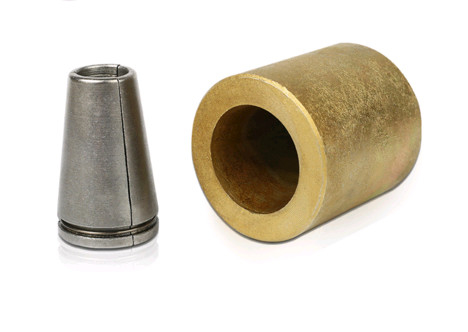

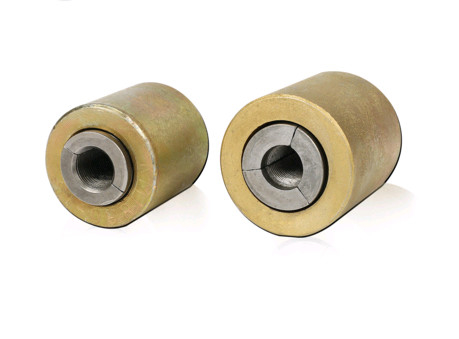

Mono Strand Post Tension Prestress Barrel and Anchor Wedges for Construction
Description
Anchor Wedges (also commonly known as Wedge Grips) is an important part of the post tensioning system. It works in tanden with the anchor head that holds the individual tensile element. The prestressing load is then transfer to the Bearing Plate. For some small tendon sizes, this prestressing force can be transferred directly to the structure without the need of Bearing Plate.
Specification
Product name | Mono strand post tension prestress barrel and wedges |
Application | highways, railways, bridges, building constructions |
Certificate | ISO9001:2015 |
Raw material of wedge | 20CrMnTi |
Raw material of anchor head | 40Cr |
Surface treatment | Heat treatment |
Hardnees of wedge | HRA79.5-86 |
Hardnees of anchor head | HRC3-33 |
Packing | 50 pcs put in one Plastic bag,4 bag put in one carton(total 200 pcs),then put in wooden case for sea shipment |
Delivery time | 10 days |
Payment terms | T/T,L/C |
Company Information
Our products are extensively applied in many projects such as highways, railways, bridges, building constructions, hydroelectric projects, TV towers, large containers, rock anchors and ground anchors.
We have a great team to supply professional design, excellent servise, high quanlity products, fast delivery and on time after-sales, so that our products were sold to firms all over the word. And have more than 8 years experience for international trade. Welcome to cooperation with us to reach your high quanlity and best service request.
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact Person: Mr. Paul
Tel: +86-15067447509
Fax: 86-574-88923602
