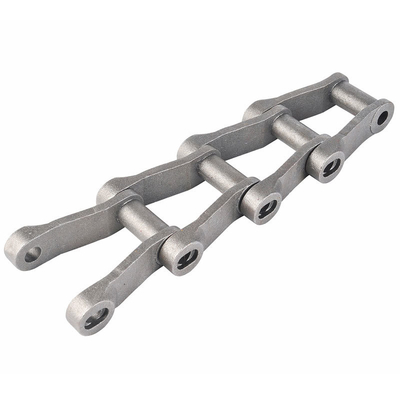

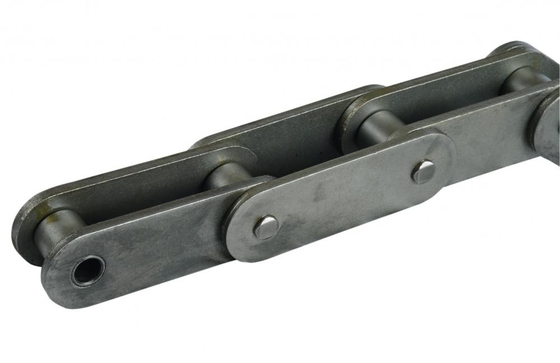

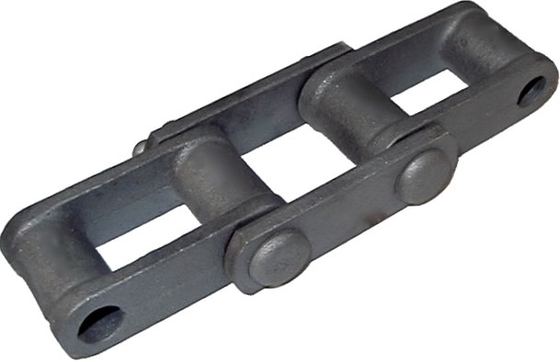

Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing

Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing

  • Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing
  • Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing
  • Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing
Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing
Product Details:
Place of Origin: Ningbo China
Brand Name: nc68
Certification: ISO 9001
Model Number: 68
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Material: Alloy Structure: Roller Chain
Surface Treatment: Polishing Chain Size: As Customer′s Drawing
Feature: Oil Resistant Size: 120mm*950mm
High Light:

investment and precision casting

,

lost wax casting

Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing

Application

Roller chain or bush roller chain is the type of chain drive most commonly used for transmission of mechanical power on many kinds of domestic, industrial and agricultural machinery, including conveyors, wire- and tube-drawing machines, printing presses, cars, motorcycles, and bicycles. It consists of a series of short cylindrical rollers held together by side links. It is driven by a toothed wheel called a sprocket. It is a simple, reliable, and efficient means of power transmission.

The chain & sprocket kit makes for a simple but extremely effective combination. These components are an integral part of logistic equipment, material handling equipment, and other types of automated mechanical assemblies. Renowned for durability and dependability. We can provide prospective customers with outstanding chain transmission solutions.

About Us

As an experienced Chinese transmission chain manufacturer, we offer a wide variety of products including the engineering class roller chain, conveyor chain, elevator chain, drop forged chain, welded steel chain, and sprockets. Also available are specialized chains for sugar and palm oil industries.

Custom orders with pre-attached drawings and samples can be accommodated. We will formulate corresponding blueprints and await the manufacturing confirmation. Fact-more than 40% of our annual production value can be attributed to custom products with non-standard specifications.

Product Specification

Chain No. Pitch P (mm) Diameter of roller d1 (max) (mm) Inner width of inner link b1(min) (mm) Diameter of pin d2 (max) (mm) Length of pin L (max) (mm) Height of sidebar h2 (max) (mm) Thickness of sidebar T (mm) Tensile strength Q (min) (KN)
NC01 78.1 31.75 31.4 15.88 89.2 38.1 15.88 265
NC02 78.1 31.75 31.75 15.88 89.65 38 15.88 213
Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing 0

Alloy Long Pitch Transmission Roller Chain / Cranked Link Chain Oil Resistant Polishing 1


Our Advantages

1 3D Model drawing for exact dimension control.
2 Prompt & Accurate quotation on requests.
3 Production process tracking feedback in time.
4 Secure & confidential contract.
5 OEM service by custom-made.
6 Absolute quality guarantee with strict inspection.



FAQ



1. How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.

2. What is the transportation?
If small quantity, we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
